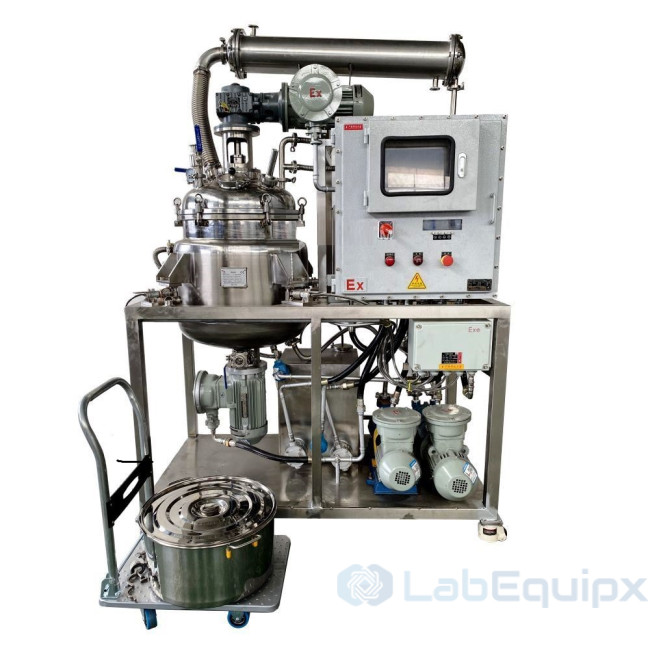

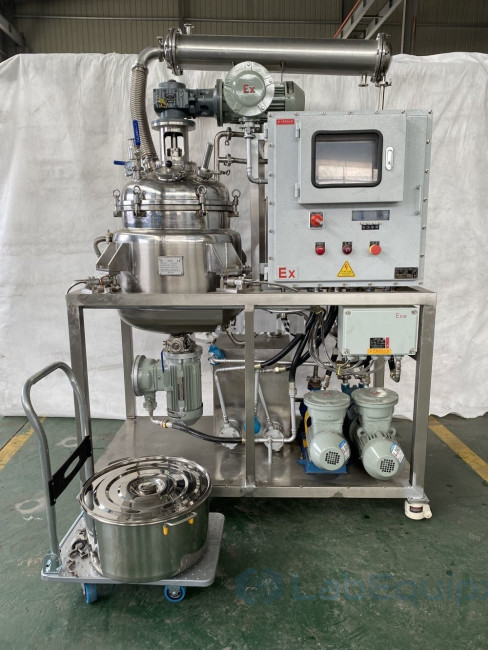

Intelligent Stainless Steel Distillation Reactor LEISSDR
Intelligent Stainless Steel Distillation Reactor LEISSDR - lab scale stainless steel distillation reactor with reflux devices.
This distillation equipment is including: Reaction vessel/ Reactor, mixing system, vacuum system, Vertical column, horizontal condenser, receiver/separator, heating system, platform.
Features:
- Volume: 20L, 50L, 100L, 200L, 500L, 1000L.
- Including jacketed distillation reactor, horizontal condenser, storage tank, heating system, pipelines, valves, temperature gauge PT100,pressure gauge, platform etc;
- Material:SS304/SS316;
- Working pressure: Vacuum/ 3bar;
- Heating method: Oil cycling; Electric heating;
- Cooling method: Internal cooling coils optional;
- The mirror of the inner container is dealt with by brightening, and its roughness is equal to or less than 0.4 um.
- The mixing tank is done at a variable or constant speed according to various capabilities and technical requirements.
Specification of Reactor:
Material SS316 Volume 100 liters Working pressure Atmosphere Working temperature 0-110°C Top closure Elliptical head Shell size 500mm*450mm thic: 4mm Jacket size 600mm 4mm Heating Cycling heating Motor Explosion-proof Mixer Frame agitator. ЗkW. 0-60 rpm adjust. SS304 Homogenizer Homogenizer, 2.2kW. 0-2900rpm adjust. SS304 Seal type Mechanical seal drive (Water cooling) Weights cell Display on the control system Opening port Feeding inlet port, Vent port, Temperature sensor port, Pressure gauge, Distillation port, Reflux port View glass port, Bottom discharge port Control system Timers to preset, Power on/off, Mixer on/off + speed control, Homogenizer on/off + speed control, Temperature display and control Weighing display, Vacuum pump control Specification of Reflux System:

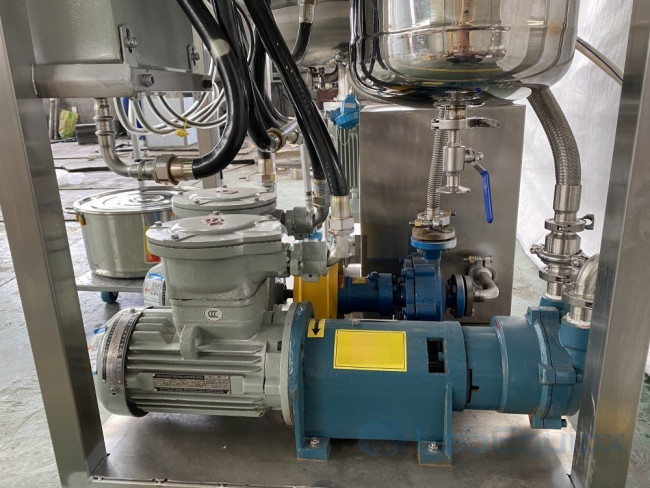

Condenser model Fixed shell and tube Cooling area 3m2 Material SS316 Reflux pipeline SS316, with view mirror Receiving tank 30L,.SS316 Valve, pipeline, frame SS316 Vacuum pump Vacuum pump with control, Explosion-proof Mixing tank fittings optional as follows:
Vessel fittings
Cleaning ball, Long flange mirror; Mirror light; Sampling valve; Liquidometer, Glass manhole
Pump Feeding pump, recycling pump, metering pump, sanitary pump, emulsion pump Pipeline Pipeline mirror; Ball valve; Butterfly valve; Filter Distillation fittings Distillation fittings Control PLC control; Explosion-proof pannel
| Model | LEISSDR |
| Brand | LabEquipx |
